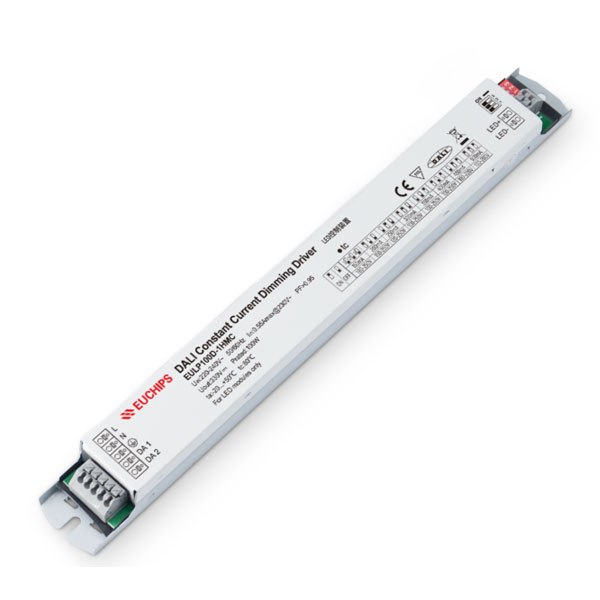

100W 150~500mA*1ch DALI CC Driver EULP100D-1HMC
100W 150~500mA*1ch CC DALI Driver EULP100D-1HMC
EULP100D-1HMC is a 100W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 EULP100D-1WMC-0 can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support DALI software to adjust output current
3. Meet DALI protocol IEC 62386
4. Support Touch DIM function
5. High efficiency up to ≥94%
6. Built-in active PFC function
7. Logarithmic dimming，dimming effect smooth, no flicker
8. Protections: Short circuit, Over load, Over voltage
9. Suitable for indoor LED lighting application, vapor light, and so on
Technical Parameters
| Model | EULP100D-1HMC | |
| Input | Efficiency | ≥94%@220VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@220VAC, Full load | |
| THD(full load) | ≤10%@220VAC, Full load | |
| AC Current(max) | 0.55Amax@220VAC | |
| No load power | <0.5W | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start,60A(twidth=28.9us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC)Power(W) | 150mA/180-250V/37.5W 200mA/150-250V/50W 250mA/120-250V/62.5W 300mA/100-250V/75W350mA/100-250V/87.5W 400mA/100-250V/100W 450mA/100-220V/99W 500mA/100-200V/100W |
| Channel | 1 | |
| Current Tolerance | ±5% (150mA ±7%, 200mA ±7%) | |
| No load output voltage | 330VDC max | |
| Function | Dimming Mode | ±5% (150mA ±7%, 200mA ±7%) |
| Dimming Range | 1-100% | |
| Protection | Short circuit | Close output, recovers automatically after fault removed |
| Over Load | No output, power off and restart | |
| Over Voltage | No output, power off and restart | |
| Safety&EMC | Surge | L-N:1kV L&N-PE:2kV |
| Withstand Voltage | I-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mA | |
| Safety Standards | EN61347, EN61347 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-3-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 232g±5%/PCS; 50PCS/Carton; 12.1kg±5%/Carton; Carton Size:498*334*130mm(L*W*H) | |
| Dimension | 280*30*21mm(L*W*H) | |
