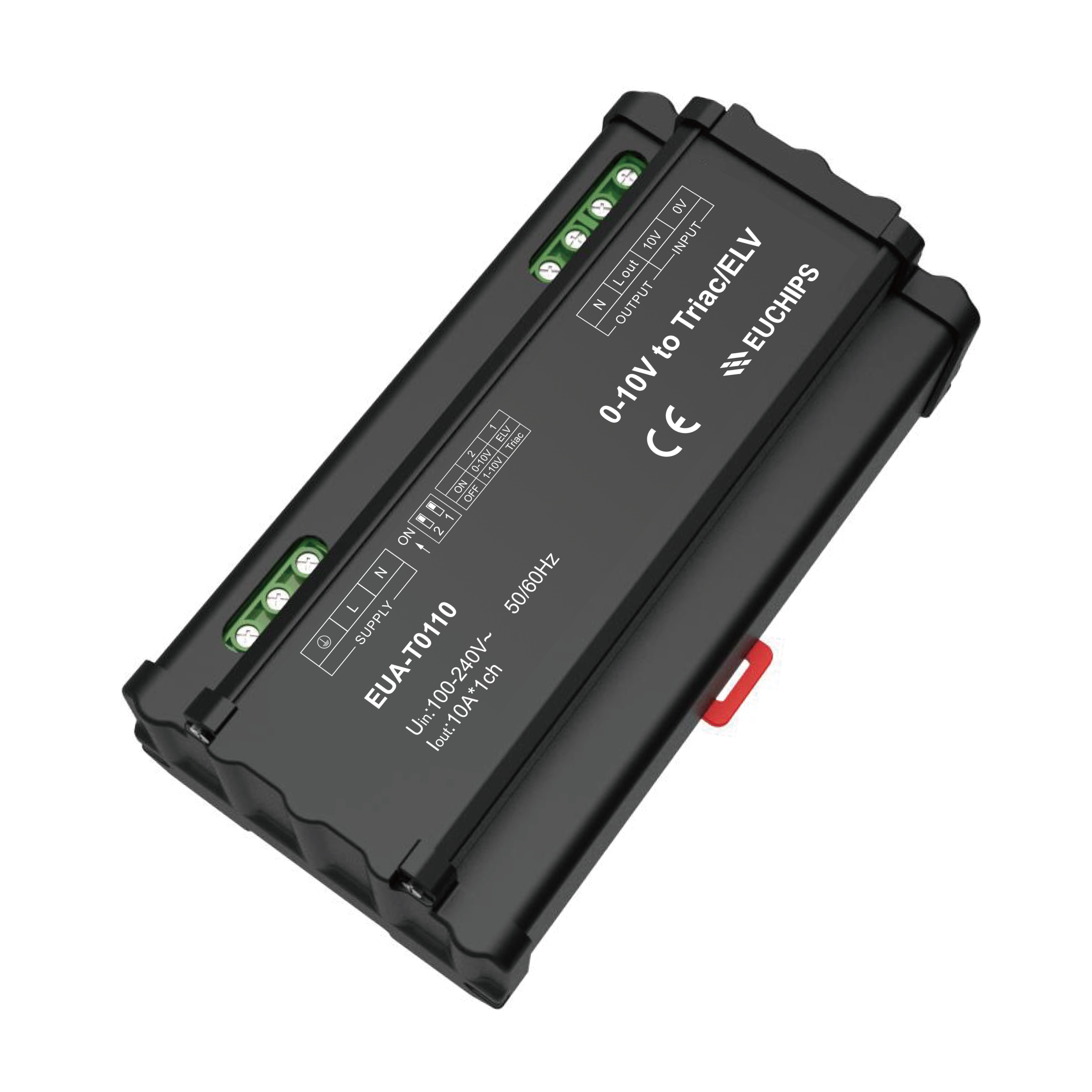

0-10V to Triac controller EUA-T0110
0-10V to Triac controller EUA-T0110
This product is mainly used for thyristor dimming power supply, with 0-10V analog signal control of the product. The output is 220V 50Hz or 110V 60Hz to drive the thyristor power supply to achieve easy dimming product wiring and simple control.
Features
· 0-10V analog signal control 220V 50Hz or 110V 60Hz tangential output
· Output single AC front cutting or back cutting, maximum output current 10A
· Standard 35mm guide housing for easy installation
· Can dimmer incandescent lamps, halogen lamps, LED thyristor dimming lamps or power supplies
Technical Parameters
| Model | EUA-T0110 | |
| Input | 0-10V | Analog signal |
| 1-10V | Analog signal | |
| AC 220V 50Hz / 110V 60Hz | Alternating current voltage AC 220V 50Hz / 110V 60Hz | |
| Output | AC 220V 50Hz / 110V 60Hz | 10A front tangent or back tangent |
| Channel | 1 | |
| Dimming mode | Dip switch 1 | Dip switch 1 does not turn green when the light is on. Dip switch 1 turns blue when the light is on, the light is dimmed when the light is on |
| Dip switch 2 | Dip switch 2 does not dial 1-10V dimmer, and DIP switch 2 turns 0-10V dimmer | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Net weight | 220g | |
| Dimension | 175*93.4*63.2mm(L*W*H), Standard 35mm rail mounting | |
